Configure Ultra for the connection, sensing, and output hardware the site needs.

Start with the WiFi Ultra controller, then add LTE, temperature protection, actuator control, GPS, or relay expansion only when the installation calls for it.

Connectivity

WiFi is the base controller configuration. Add LTE when the controller needs its own cellular path for remote monitoring, commands, support, and firmware workflows.

Temperature control

Add the PT100 controller kit when engine, alternator, or environment temperature sensing/protection is required. The kit includes the controller and 3 industrial PT100 probes.

Actuator, GPS, and relay options

Add 1 x Choke actuator, or 1 x Choke + 1 x Throttle actuator, where direct 12VDC actuator movement is needed. Add GPS for location reporting, and add the waterproof relay kit when external switching is required.

What this product includes

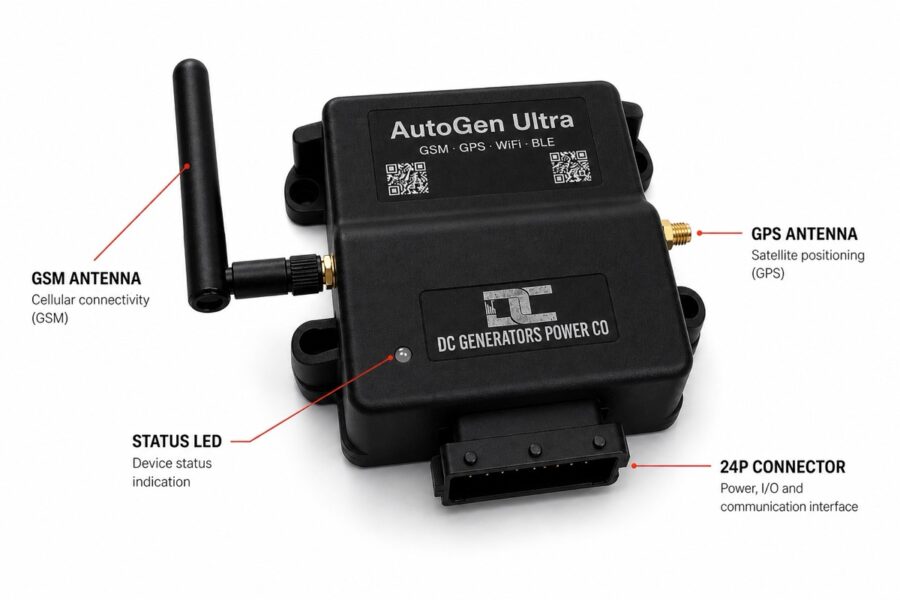

Controller platformWide 12-58VDC protected input, start/stop/aux relay outputs, direct 12VDC actuator channels, run-signal confirmation, and AutoGen cloud/app support.

Connectivity optionsWiFi cloud connection is included. LTE cloud connection adds $55.

Nearby setup and serviceBLE terminal access plus WiFi Local AP browser/mobile access for commissioning, diagnostics, and supported local control.

Voltage and sensing16-bit voltage sensing/calibration where fitted, run confirmation by configured AC/DC signal, and optional GPS positioning with the correct module.

Actuator optionOptional direct 12VDC actuator control: 1 x Choke actuator for $45, or 1 x Choke + 1 x Throttle actuator for $90.

GPS optionOptional GPS module for installations that need controller location reporting, $49.

PT100 optionPT100 controller with 3 industrial PT100 probes, $130.

Relay optionIncludes 3 x 12VDC 40A waterproof relays with sockets for external switching needs, $63.

Select the options above before checkout.

The lowest-price configuration is the WiFi Ultra controller at $440. Add LTE, PT100 temperature control, actuator units, GPS, or relay expansion only when those features are needed for the installation.

Connectivity	WiFi cloud connection, LTE cloud connection
Temperature control	No temperature control, PT100 controller with 3 x PT100 industrial probes
Actuator control	No actuator, 1 x Choke actuator, 1 x Choke + 1 x Throttle actuator
GPS module	No GPS module, Add GPS module
Relay kit	No relay kit, Add 12V waterproof relay kit

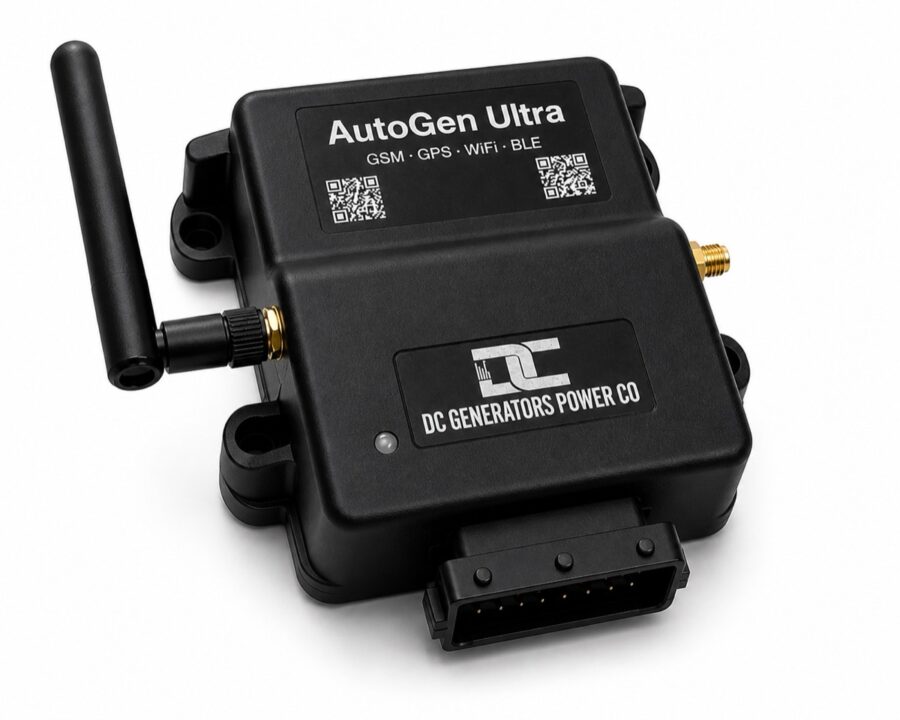

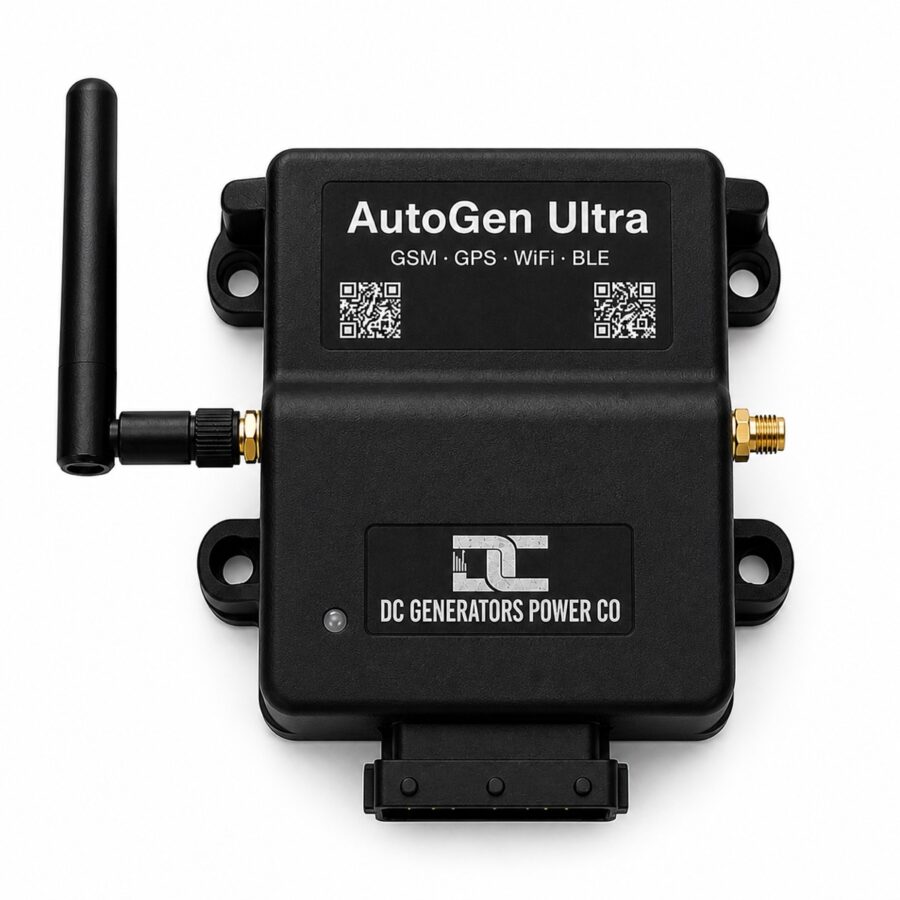

AutoGen Ultra
