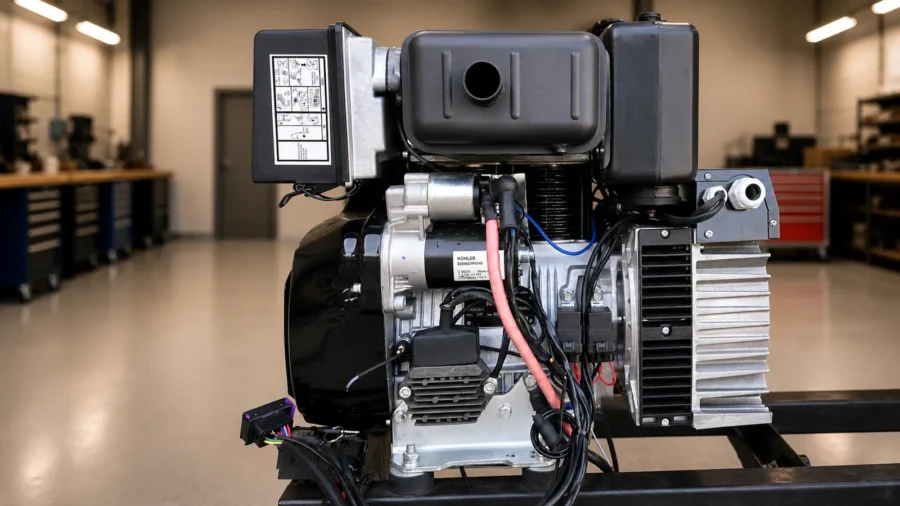

D180 AutoGen Kohler KD425-2 full side view

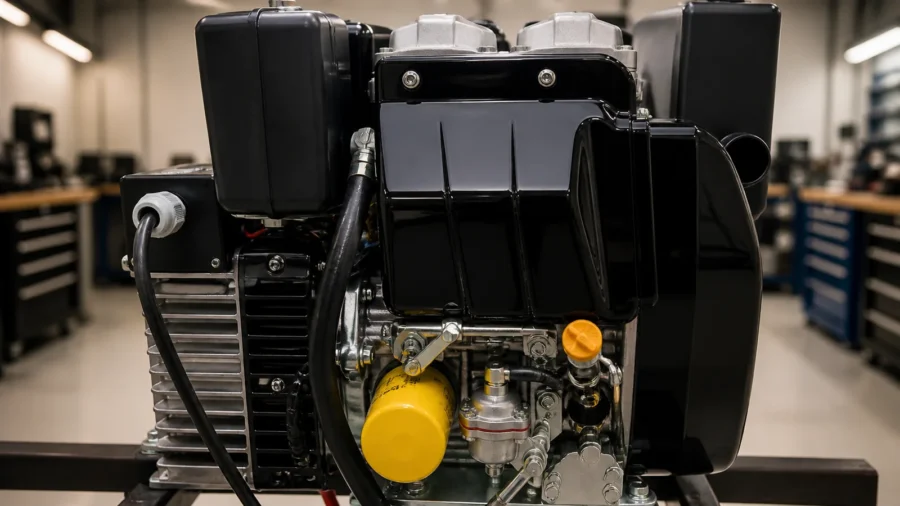

D180 AutoGen Kohler engine-side detail

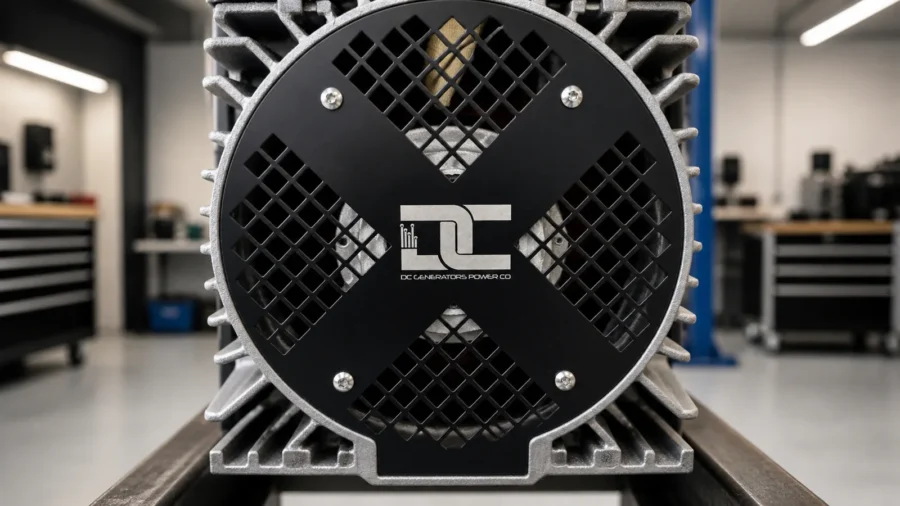

D180 AutoGen alternator front detail
  1. D180 AutoGen Kohler KD425-2 full side view
  2. D180 AutoGen Kohler engine-side detail
  3. D180 AutoGen alternator front detail

D180 AutoGen – Kohler KD425-2

Price range: $9,920.00 through $9,969.00

High-output connected diesel 48V DC generator with permanent magnet alternator, up to 180 A output, WiFi or LTE cloud connection, optional GPS antenna on LTE configurations, BLE terminal, WiFi Local AP, and PT100 sensing.

SKU: AUTOGEN-D180-KD425-2 Category:

D180 AutoGen Kohler KD425-2

High-output diesel 48V DC generator for larger battery systems.

D180 AutoGen is the higher-output diesel model in the AutoGen industrial 48V DC genset range. It uses a variable rpm generator and permanent magnet alternator for direct DC charging, with adjustable voltage and current output up to 180 A, with measured fuel-to-electric performance data available for review.

Up to 180 A output

Built for larger 48V battery systems and heavier recovery requirements than the 100 A class models.

Measured D180 performance

The 2026-03-30 report shows a 180 A test point at 55.2 V, 9.94 kW, 3.00 L/h, 3.31 kWh/L, and 33.3% fuel-to-electric efficiency.

Connected field support

WiFi or LTE cloud connection, optional GPS antenna on LTE configurations, BLE terminal, WiFi Local AP, PT100 temperature sensing, and dealer fleet tools support deployed units.

What this product includes

Generator typeIndustrial-grade diesel 48V DC generator for high-output battery charging applications.
AlternatorPermanent magnet alternator for efficient 48V DC charging output.
Adjustable currentUp to 180 A output depending on configuration, battery state, operating conditions, and setup.
Engine platformKohler KD425-2 based AutoGen 48V DC generator.
Measured reportDownload the D180 performance report: 100 A and 180 A test points with measured fuel rate, kWh/L, and fuel-to-electric efficiency.
180 A test point55.2 V, 9.94 kW, 3.00 L/h, 3.31 kWh/L, and 33.3% fuel-to-electric efficiency.
Connectivity optionsWiFi cloud connection or LTE cloud connection, selected before checkout.
Temperature sensingStandard external PT100 control board for engine, alternator, and environment temperature sensing.
Platform supportCloud dashboard, mobile apps, API direction, dealer fleet tools, and firmware workflows.

Configure the D180 before checkout.

Select from the configure options above before adding to cart. Shipping is arranged after order as destination, customs, and carrier requirements vary by location.

Connectivity

WiFi cloud connection, LTE cloud connection
GPS module

No GPS module, Add GPS module
